This tutorial covers the ABAP Repository, a key component of SAP’s development environment, allowing developers to manage, create, and modify objects. It is ideal for beginners looking to get started with SAP development.In this SAP ABAP tutorial, we will learn about ABAP Repository in detail.
1. What is ABAP Repository?
The ABAP Repository is a collection of all development objects and programs created in the SAP system. It provides a central place where all custom and standard SAP objects are stored, organized, and maintained.
Examples of objects stored in the repository include:
- Reports
- Function modules
- Tables
- Data elements
- ABAP Classes and interfaces
2. Importance of ABAP Repository
The ABAP Repository ensures:
- Centralized Development: All objects are stored in one location.
- Version Control: Developers can track changes to objects.
- Reusability: Objects can be reused in other programs, ensuring consistency.
- Transportability: Objects can be transported between SAP systems (e.g., from development to production environments).
3. Types of Objects in ABAP Repository
Here are some major categories of objects stored in the repository:
| Category | Example Objects |
|---|---|
| Data Dictionary | Tables, Data Elements, Domains |
| Programs | Reports, Module Pools |
| Function Modules | RFCs, BAPIs |
| Classes & Interfaces | ABAP Objects |
| Screens | Dynpros, UI Components |
4. How to Access ABAP Repository
To access the ABAP Repository:
- Login to SAP GUI.
- Navigate to Transaction Code
SE80. This opens the Object Navigator. - Select the desired object type (e.g., Programs, Classes, or Dictionary Objects).
- Browse or search for objects based on your project needs.
5. Step-by-Step Guide to Creating and Managing Objects
Let’s walk through creating and managing objects in the ABAP Repository.

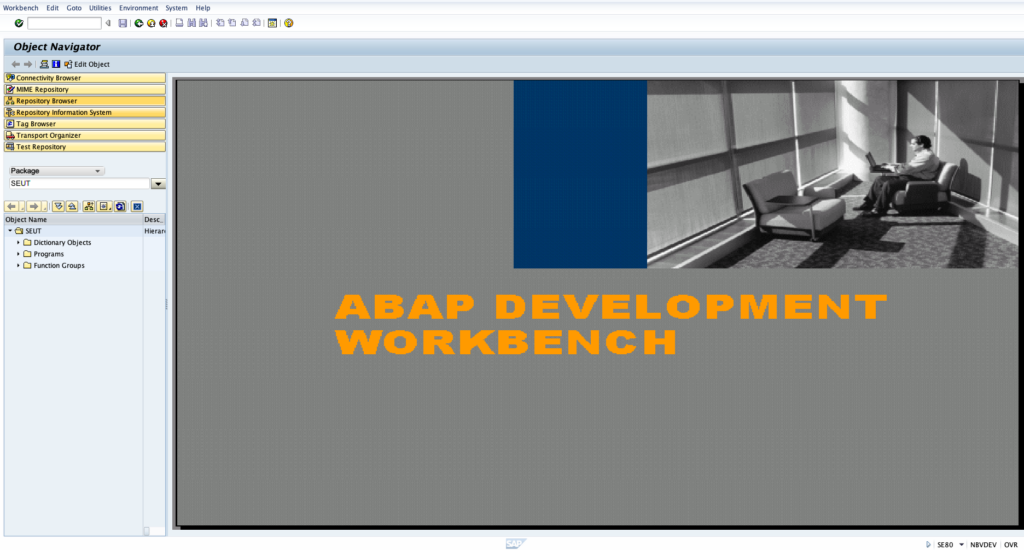

Step 1: Access the Object Navigator
- Open SAP GUI.
- Use the Transaction Code SE80.
Step 2: Select the Object Type
- In the left pane, choose the type of object you want to create (e.g., Program, Table, or Class).
Step 3: Create a New Object
- Right-click on the object type and select Create.
- Provide the necessary name and attributes for your object.
Step 4: Write Code or Define Attributes

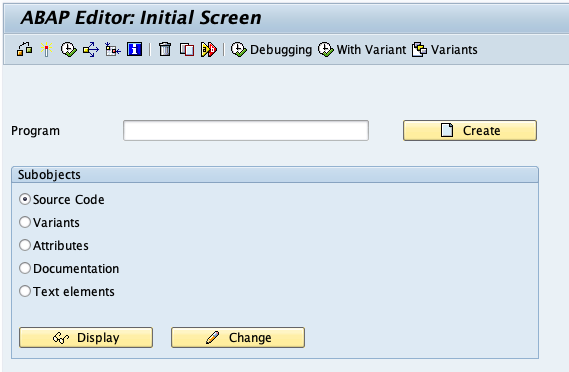

- For reports or programs: Write the required ABAP code.
- For tables or data dictionary objects: Define fields, data types, and technical settings.
Step 5: Save and Activate
- Click Save (Ctrl+S).
- Click Activate (Ctrl+F3) to make the object available in the SAP system.
Step 6: Test Your Object
- For programs, run using Transaction Code F8.
- For tables, verify the table in SE11.
6. Example: Creating a Table in ABAP Dictionary

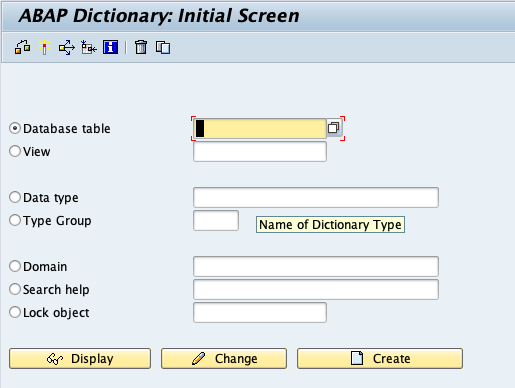

Step 1: Access Transaction SE11
- Open the SAP GUI.
- Enter SE11 in the Command Field.
Step 2: Define the Table
- Choose Database Table and enter a name (e.g.,
ZCUSTOMER). - Click Create.
Step 3: Define Fields
- Enter field names and assign data elements.
- Define Primary Key and Technical Settings (e.g., Delivery Class, Data Class).
Step 4: Save and Activate
- Save your table.
- Activate it using the Activate button.
Step 5: Test the Table

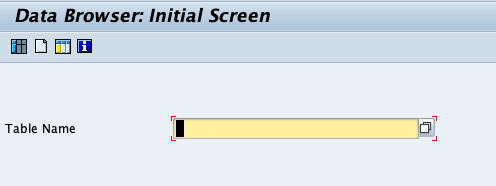

- Use Transaction Code SE16 to view and test the table.
7. Tips for Using the ABAP Repository
- Naming Conventions: Always start custom objects with
ZorY. - Documentation: Add comments and documentation for better maintenance.
- Transport Management: Ensure that all objects are assigned to a transport request.
- Reuse Objects: Avoid duplicating objects; instead, use reusable components.
8. Conclusion
The ABAP Repository is an essential component of SAP development, offering a centralized way to manage development objects. By following this tutorial, you should be able to access the repository, create new objects, and activate them for use in your system.
To deepen your understanding, explore additional tools like ABAP Workbench, ABAP Debugger, and SE80 Object Navigator.
Would you like a more detailed walkthrough of a specific object, such as creating a report or function module? Let me know!
