1. Introduction to Departure Zones in SAP

A Departure Zone in SAP is a geographical or logical grouping assigned to a shipping point, representing the origin from which goods are dispatched. It is a critical component in route determination, enabling the system to calculate optimal shipping routes based on the departure location, destination zones, and transportation conditions. Mastery of departure zones ensures efficient logistics planning, cost savings, and on-time deliveries.

2. Key Concepts & Business Impact

2.1 Core Components

  • Shipping Point: A physical/virtual location (e.g., warehouse, plant) defined in SAP (OVXD).
  • Transportation Zone: A geographical area (e.g., “US-East,” “EU-Central”) assigned to shipping points and customers (OVX3).
  • Route Determination: The process of defining shipping routes based on departure/destination zones, shipping conditions, and means of transport.

2.2 Why Departure Zones Matter

  • Route Optimization: Auto-select cost-effective routes (e.g., truck vs. rail).
  • Carrier Selection: Assign carriers based on zone-specific agreements.
  • Lead Time Accuracy: Improve delivery scheduling by aligning routes with zone distances.

3. Configuration & Customization

3.1 Define Transportation Zones

  • Transaction Code: OVR1 (Transportation Zone Maintenance).
  • Create zones (e.g., ZONE_US_EAST, ZONE_EU_NORTH).
  • Assign zones to regions, countries, or postal codes.

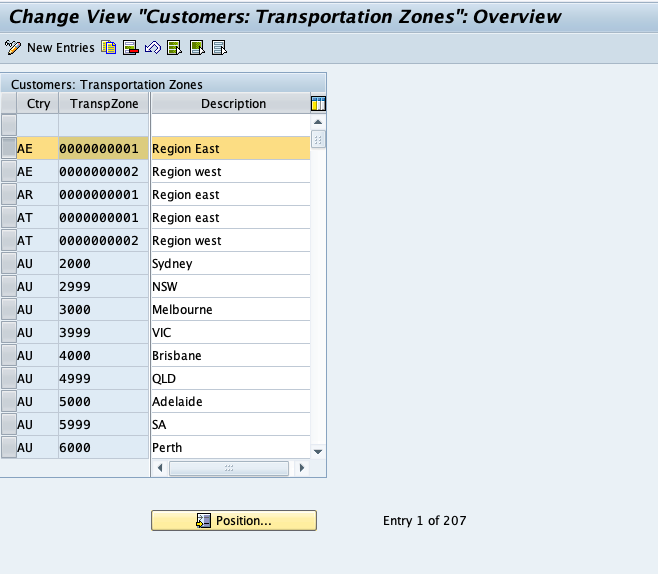

Define Transportation Zones in SAP

3.2 Assign Departure Zone to Shipping Point

  • Transaction Code: OVXD (Shipping Point Maintenance).
  • Link the shipping point (e.g., SHPT_WH01) to its departure zone.
  • Table: TVSZ (Shipping Point to Zone Assignment).

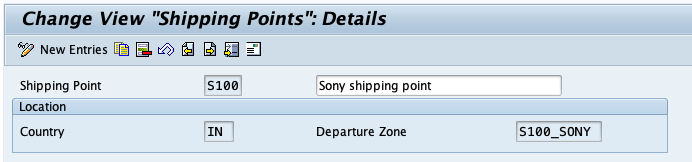

Assign Departure Zone to Shipping Point

3.3 Route Determination Setup

  • Condition Tables & Access Sequences:
  • Use OVARto configure route determination conditions (e.g., departure zone + destination zone + shipping condition).
  • Example: Route ROUTE_01 is selected for shipments from ZONE_US_EAST to ZONE_EU_CENTRAL.

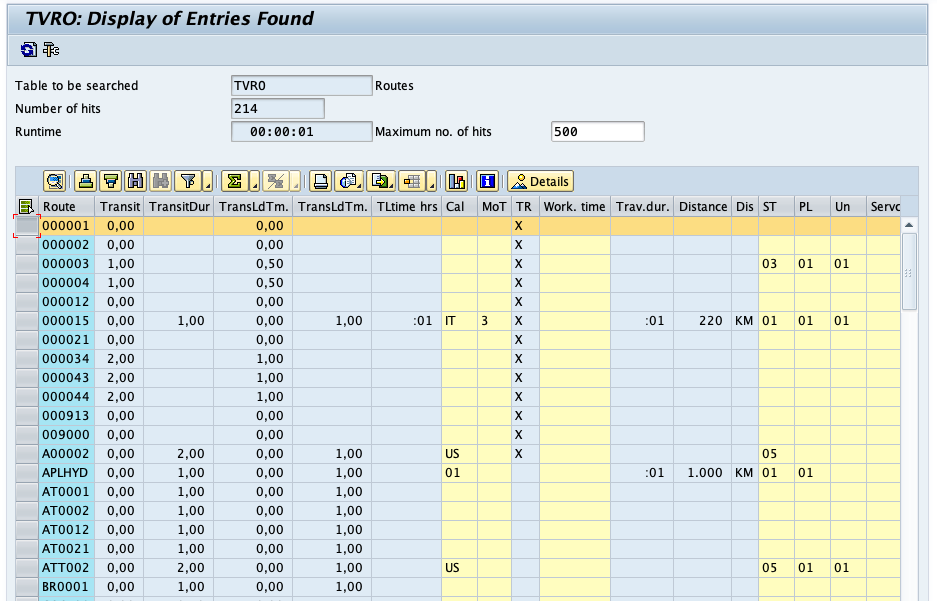

  • Maintain Routes: Define routes in TVRO and assign stages (e.g., carrier, transit times).
Route Determination Setup in SAP

4. Integration with SAP Modules & Processes

4.1 SD Logistics Execution

  • Delivery Creation:
  • Departure zone is auto-populated from the shipping point during delivery (VL01N).
  • Impacts picking, packing, and posting goods issue.
  • Transportation Planning (TM):
  • Departure zones feed into SAP TM for carrier selection and freight cost calculation.

4.2 Cross-Functional Alignment

  • Material Requirements Planning (MRP):
  • MRP considers departure zones for replenishment lead times.
  • Foreign Trade (GTS):
  • Align zones with export control regulations (e.g., restricted regions).

5. Advanced Scenarios & Enhancements

5.1 Dynamic Zone Determination

  • BAdI Implementation:
  • Use LE_SHP_TABLES_READ to override default zone assignments based on custom logic (e.g., weather, carrier capacity).
  • EDI Integration:
  • Auto-update departure zones from external systems (e.g., warehouse management).

5.2 Intercompany & Cross-Border Shipments

  • Intercompany Routes:
  • Configure routes between departure zones of different company codes.
  • Use stock transport orders with zone-based pricing.

5.3 Mass Maintenance & Automation

  • LSMW/Recording Sessions:
  • Bulk update shipping point-zone assignments.
  • Background Jobs:
  • Schedule route recalibration during off-peak hours (SM36).

6. Troubleshooting & Optimization

6.1 Common Errors

  • Missing Routes:
  • Check zone assignments in OVXD and condition records in OVTA.
  • Incorrect Lead Times:
  • Validate transit times in route stages (TVST).

6.2 Performance Tuning

  • Indexing:
  • Create secondary indexes on TVSZ and TVRO for faster route determination.
  • Caching:
  • Enable route buffer settings in ST02.

7. Best Practices & Case Study

7.1 Best Practices

  • Naming Conventions: Use clear zone names (e.g., ZONE_<Region>_<Subregion>).
  • Regular Audits: Reconcile zones with real-world logistics changes (e.g., new warehouses).
  • Training: Educate planners on zone impact in VL10B (Delivery Due List).

7.2 Case Study: Global Retailer

Challenge: Inefficient routes due to outdated zone assignments increased freight costs by 15%.
Solution:

  • Redefined departure zones using postal code granularity.
  • Implemented dynamic route determination via BAdI (factoring in carrier discounts).
  • Result: 20% reduction in freight costs and 30% faster route planning.

8. Key Transaction Codes & Tables

PurposeTCodeKey Tables
Zone MaintenanceOVR1TZONE, TZONR
Shipping Point AssignmentOVXDTVSZ
Route DeterminationOVARTVRO, TVST
Route MonitoringVT03NVBFA (Document Flow)

9. Conclusion

Departure zones are the backbone of SAP’s route determination logic, bridging logistics execution and strategic planning. By leveraging advanced configuration, automation, and cross-module integration, organizations can transform their supply chain agility and customer service levels.

Pro Tip: Pair departure zones with predictive analytics (SAP IBP) to anticipate disruptions (e.g., weather, strikes) and reroute proactively.
