1. Introduction to Document Header in SAP

A Document Header in SAP is the top-level section of a business document (e.g., sales order, delivery, invoice) that contains global data applicable to the entire document. It serves as the foundation for processing, tracking, and integrating transactional data across modules. Key elements include document number, dates, partner roles, and organizational structures. Mastering document headers ensures data consistency, auditability, and streamlined workflows.

2. Key Components & Business Impact

2.1 Core Elements of a Document Header

  • Document Number: Unique identifier (e.g., sales order OR-10001), assigned via number ranges.
  • Document Date: Creation date, posting date, or billing date.
  • Organizational Data: Sales organization, distribution channel, division, company code.
  • Partner Functions: Sold-to, ship-to, bill-to parties (stored in KNVV/KNVP).
  • Status Management: Overall document status (e.g., “Released,” “Blocked”) in table VBUK.

2.2 Business Value

  • Process Control: Determines downstream actions (e.g., delivery, billing).
  • Audit Compliance: Provides a traceable record for financial and operational audits.
  • Integration: Links documents across SD, MM, FI, and CO modules.

3. Configuration & Customization

3.1 Document Type Setup

  • Define document types (e.g., OR for standard orders, RE for returns).
  • Assign number ranges (VOV8/VN01) and field selection rules.

3.2 Number Range Management

  • Internal vs. External Numbers:
  • Configure internal (system-assigned) or external (user-entered) numbering in SNRO.

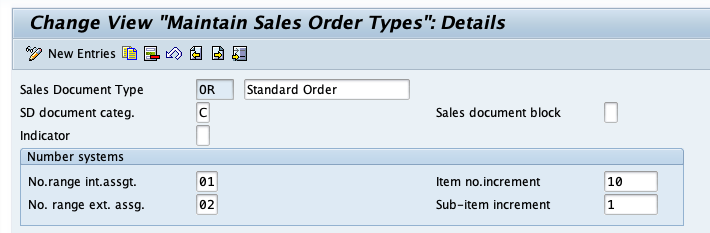

  • Example: Assign internal range 01 to sales orders via VOV8.
Document Header in SAP

3.3 Partner Determination

  • Define partner functions (e.g., sold-to, payer) and sequence for automatic partner determination.
  • Table: TPAER.

3.4 Custom Fields in Headers

  • Append Structures:
  • Use SE11 to create custom fields (e.g., project ID, contract reference) via append structures (CI_XXXX).
  • Assign to document headers using SPRO → Field Enhancement.
  • User Exits:
  • Populate custom fields using USEREXIT_SAVE_DOCUMENT or USEREXIT_FIELD_MODIFICATION.

4. Integration with SAP Modules

4.1 SD-FI Integration

  • Billing Document Header:
  • Links to sales order header via VBELN (billing document VF01 → VBRK).
  • Accounting Postings:
  • Header data (company code, posting date) flows to FI via FB01 (e.g., invoice posting).

4.2 SD-MM Integration

  • Delivery Header:
  • Inherits sales order header data (e.g., ship-to party) during delivery creation (VL01N).
  • Goods Movement:
  • Posting date from the header determines stock and account updates.

4.3 Cross-Functional Dependencies

  • Production Orders (PP):
  • Order headers reference sales documents for make-to-order (MTO) scenarios.
  • Controlling (CO):
  • Header data (cost center, profit center) drives cost allocation in KOB1.

5. Advanced Scenarios & Enhancements

5.1 Dynamic Header Data

  • BAdI Implementations:
  • Use SD_SALES_DOCUMENT_MAINTAIN to auto-populate fields (e.g., incoterms based on customer country).
  • Condition Techniques:
  • Derive pricing dates or payment terms dynamically using access sequences.

5.2 Document Splitting & Merging

  • Header-Level Splitting:
  • Split orders into multiple deliveries based on shipping conditions or plant assignments.
  • Merge Documents:
  • Combine headers of similar orders (e.g., same ship-to) using VL10B (Delivery Due List).

5.3 Mass Processing & Automation

  • BAPI/IDoc Integration:
  • Create/update headers in bulk via BAPI_SALESORDER_CREATEFROMDAT2 or IDoc ORDERS05.
  • LSMW/Recording Sessions:
  • Automate header data entry for repetitive processes.

6. Troubleshooting & Optimization

6.1 Common Errors

  • Number Range Exhaustion:
  • Extend ranges via SNRO or reset intervals (e.g., yearly reset).
  • Missing Partner Functions:
  • Check partner determination schema in OVAH and customer master (XD02).
  • Inconsistent Dates:
  • Validate date derivations in V_TVLP (Date Proposal).

6.2 Performance Tuning

  • Indexing:
  • Optimize tables VBAK (Sales Header) and VBUK (Header Status) with secondary indexes.
  • Buffering:
  • Enable table buffering in ST02 for frequently accessed header data.

7. Best Practices & Case Study

7.1 Best Practices

  • Standardize Naming: Use document type prefixes (e.g., OR- for orders, RE- for returns).
  • Data Governance: Regularly archive old documents (SARA) to maintain system performance.
  • Validation Rules: Enforce mandatory fields (e.g., PO number) via OBLIG in field selection.

7.2 Case Study: Automotive OEM

Challenge: Inefficient order processing due to missing header data (e.g., incoterms, plant assignments).
Solution:

  • Implemented BAdI SD_SALES_DOCUMENT_MAINTAIN to auto-fill header fields from customer-material info records.
  • Configured dynamic number ranges per plant.
    Result: 40% reduction in order entry errors and 30% faster processing.

8. Key Transaction Codes & Tables

PurposeTCodeKey Tables
Document Type SetupVOV8TVAK (Sales Doc Types)
Number Range MaintenanceSNRONRIV (Number Ranges)
Header Status ManagementVBUKVBUK
Partner DeterminationVOPANTVBPA

9. Conclusion

The document header is the nerve center of SAP transactional data, enabling end-to-end process integration and control. By leveraging advanced configuration, automation, and governance, organizations can ensure data accuracy, compliance, and operational agility.

Pro Tip: Use Fiori Apps (e.g., Manage Sales Orders) to provide real-time header data visibility to stakeholders.
