The Package Builder in SAP is a central tool in the ABAP Workbench used for managing development objects and their transport across systems in the SAP landscape. It provides a structure for modularizing development work and offers detailed functionalities for organizing, encapsulating, and transporting development packages. Here’s a step-by-step breakdown, from basic to advanced concepts.

What is SAP Package Builder?

The SAP Package Builder is part of the ABAP Workbench, designed to organize development objects into structured containers called packages. These packages facilitate:

  • Encapsulation of development components.
  • Efficient transport of objects across SAP system landscapes.
  • Dependency management for better system performance and stability.

Whether you’re working on custom development or managing standard objects, the Package Builder ensures smooth and organized development processes.

1. Introduction to SAP Packages

A package in SAP acts as a container for development objects such as programs, classes, function modules, and more. Packages enable modular and structured development, facilitating:

  • Reusability of components
  • Better system performance
  • Controlled transport of objects between SAP systems (e.g., Development, Quality, Production)

2. Basic Features of the Package Builder

The Package Builder allows developers to:

  • Create and manage packages: Assign objects to specific packages for better modularization.
  • Define transport attributes: Specify the transport layer and encapsulate objects for system transfers.
  • Set dependencies: Define relationships between packages to ensure proper usage and dependency checks.

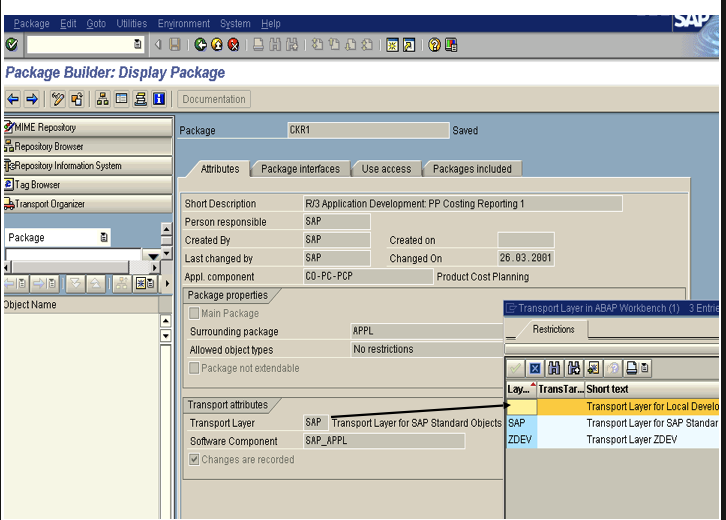

Key Sections in Package Builder (As seen in the image):

  1. Transport Attributes:
    • Defines the transport layer and software component.
    • Indicates whether changes to objects are recorded.
  2. Attributes Tab:
    • Responsible person or team.
    • Short description of the package.
    • Component assignment (e.g., Application Component like CO-PC-PCP).
  3. Package Interfaces and Restrictions:
    • Interfaces allow exposing selected objects for usage by other packages.
    • Restrictions ensure encapsulation by controlling external access.
SAP package builder

3. Step-by-Step Guide to Using Package Builder

a. Creating a Package

  1. Open the SE80 transaction (ABAP Workbench).
  2. Choose Repository Browser > Right-click > Select Create Package.
  3. Provide:
    • A unique package name.
    • A meaningful description.
    • Transport layer (e.g., SAP standard or ZDEVs for local development).

b. Assigning Objects to a Package

  • Objects like programs, function groups, or classes can be assigned to the package during their creation or manually updated later.
  • Use SE03 (Transport Organizer Tools) for managing objects within the package.

c. Defining Dependencies

  • Go to the Package Interfaces Tab to declare which objects or packages can access this package.
  • Define use access policies to prevent unauthorized usage of internal components.

4. Advanced Features

a. Transport Management

Packages are tied to the SAP Transport Management System (TMS). You can:

  • Assign a transport layer to ensure objects are moved between systems in the landscape (e.g., DEV → QA → PROD).
  • Use SE09/SE10 to manage transport requests for package objects.

b. Encapsulation and Visibility

Encapsulation ensures objects within a package cannot be accessed directly unless explicitly allowed via interfaces:

  • Internal objects are protected, reducing dependencies.
  • Improves system stability by preventing unauthorized access.

c. Handling Nested Packages

SAP allows nested packages, where:

  • A package can have sub-packages for better organization.
  • Parent packages manage high-level dependencies, while sub-packages focus on specific components.

d. Enhancing Performance with Package Check

SAP provides Package Check Tools:

  • Validate consistency between dependent packages.
  • Identify unused or incorrectly referenced objects.

5. Best Practices for Using Package Builder

  • Follow naming conventions: Use prefixes like Z or Y for custom packages.
  • Encapsulation: Avoid exposing all objects; use package interfaces wisely.
  • Transport policy alignment: Assign appropriate transport layers to align with the SAP system landscape.
  • Documentation: Maintain clear descriptions for better collaboration.
  • Regular audits: Use tools like SE03 to review package dependencies and objects.

6. Common Errors and Solutions

ErrorCauseSolution
“Package is not transportable”Transport layer not assignedAssign a transport layer via SE03.
“Unauthorized access to package object”Object not exposed in interfaceExpose object in the Package Interface tab.
“Package dependency conflict”Circular or missing dependenciesReview and correct package dependencies.

7. Conclusion

The SAP Package Builder is a powerful tool that enhances modularization, encapsulation, and transport management in SAP landscapes. Mastering its functionalities, from creating packages to defining dependencies and transport layers, is crucial for ABAP developers and BASIS administrators. Adopting best practices ensures efficient development and system stability.

For further details, explore SAP Help Documentation or use SE03 and SE09 for hands-on practice.
